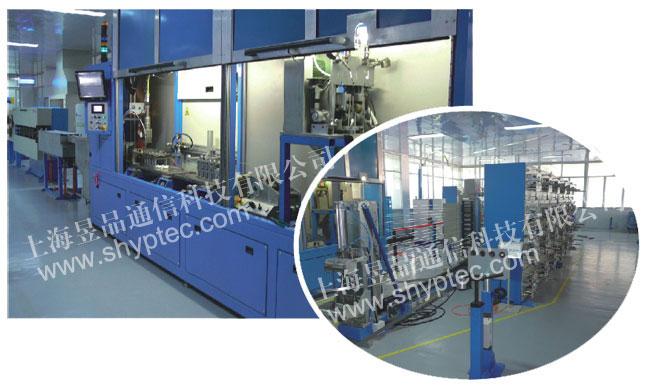

Stainless steel optical fiber loose tube welding line

Application

This stainless steel optical fiber loose tube welding line is used for producing special optical fiber loose tube, like OPGW, submarine cables or metal sheath protected cables.

Technical Data

Line speed 45 m/min

Tube dia Φ2.0-Φ4.2mm

Optical fiber qty 48

Fiber overlength 0.05-0.7 %±0.1 %

Take-up reel size 1250 mm

Line configuration

Optical fiber pay-off

Jelly degassing and filling device

Stainless steel tape payoff

Stainless steel tape traversing welding machine

Stainless steel tape payoff tension

Stainless steel tape accumulator

Stainless steel tape longitudinal welding machine

Stainless steel tape forming table

Cleaning station

A flaw detector

1200kg Caterpillar

Tension control unit

Double wheel capstan

Over-length control unit

200kg Caterpillar

Take-up

Electrical control system
